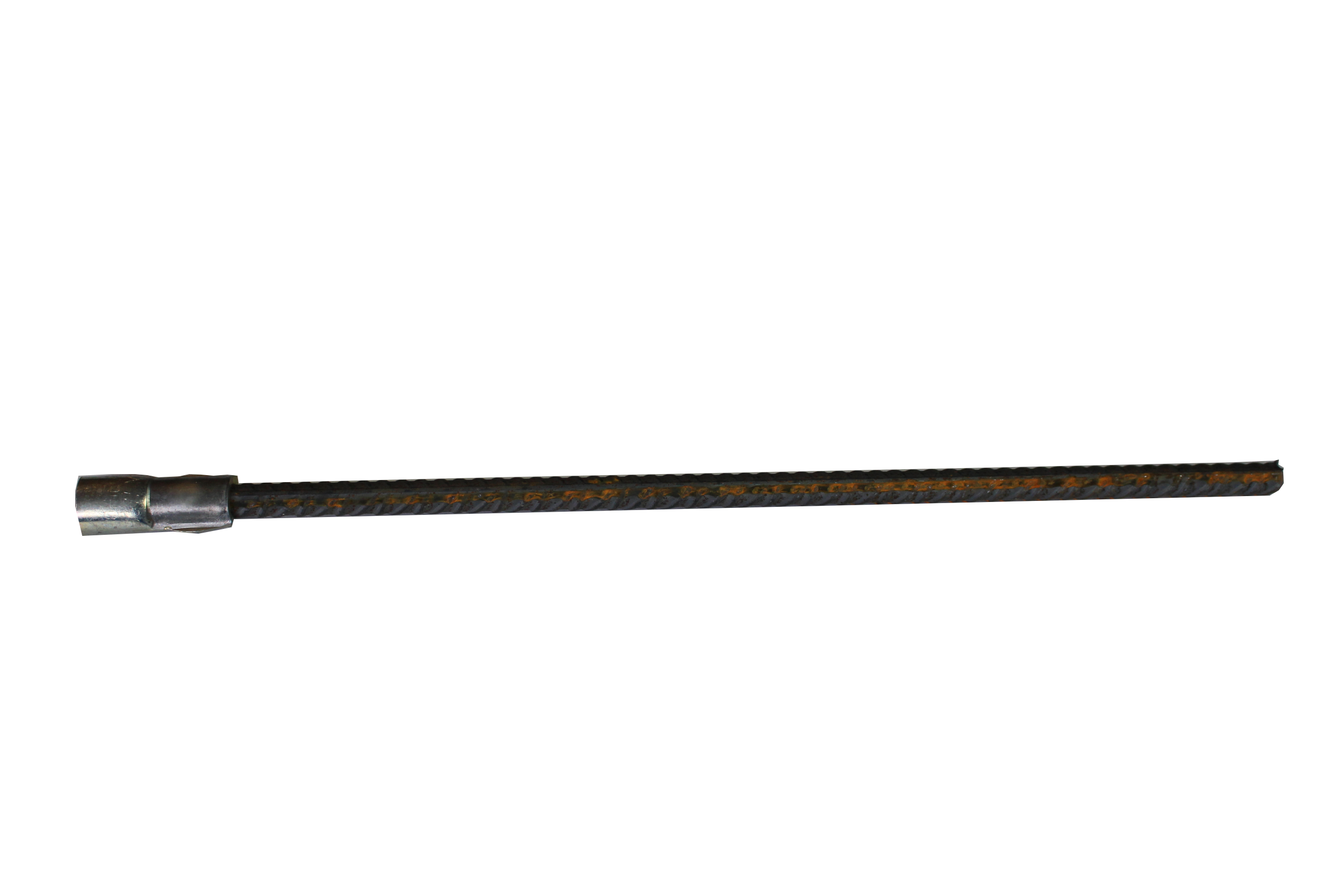

Female Couplers

The traditional method of connecting reinforcing steel is to overlap and weld together. The Threaded Coupler System is a simple, efficient and more effective method, which allows for a connection consistent with that of an uninterrupted reinforcement bar. This is achieved because the full tensile strength can be transferred with various loads. The Threaded Couplers are electrogalvanised as standard.

Clear
Category:
Product Code Length mm L Thread Dimensions Metric M Length mm A Couplers Dimensions Bar d
SRCF120570 570 M16 25 12
SRCF120800 800 M16 25 12
SRCF160800 800 M20 38 16
SRCF161020 1020 M20 38 16
SRCF161440 1440 M20 38 16
SRCF200700 700 M24 42 20
SRCF201280 1280 M24 42 20
SRCF201800 1800 M24 42 20
SRCF251600 1600 M30 52 25
SRCF252260 2260 M30 52 25
SRCF281790 1790 M36 55 28
SRCF282530 2530 M36 55 28
