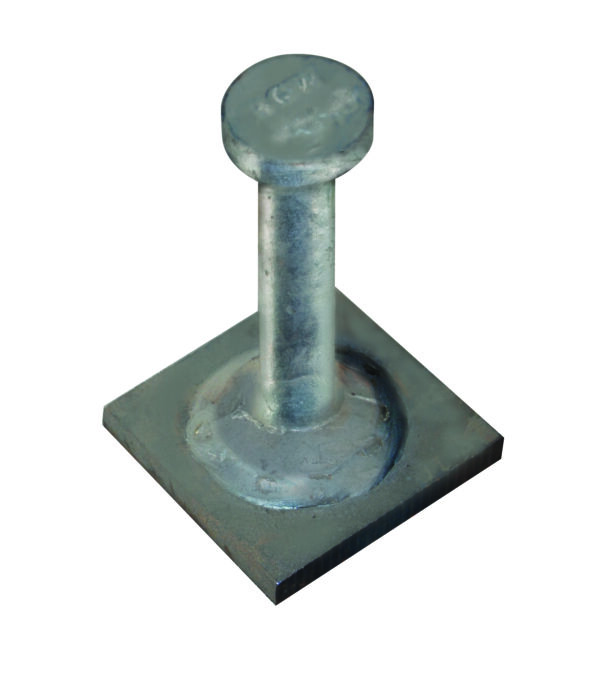

Plate Pin Anchor

These are used in shallow precast units. The plate is the basis for the additional reinforcement.

Clear
Category:
Product Code Load (T) L (mm) Plate Pack Size
SAPFP02555 2.5 55 70 x 70 x 6 1
SAPFP025120 2.5 120 70 x 70 x 6 1
SAPFP05055 5.0 55 90 x 90 x 8 1
SAPFP05065 5.0 65 90 x 90 x 8 1
SAPFP05095 5.0 95 90 x 90 x 8 1
SAPFP050110 5.0 110 90 x 90 x 8 1
SAPFP100115 10.0 115 90 x 90 x 10 1
