Philipp Connecting Rail

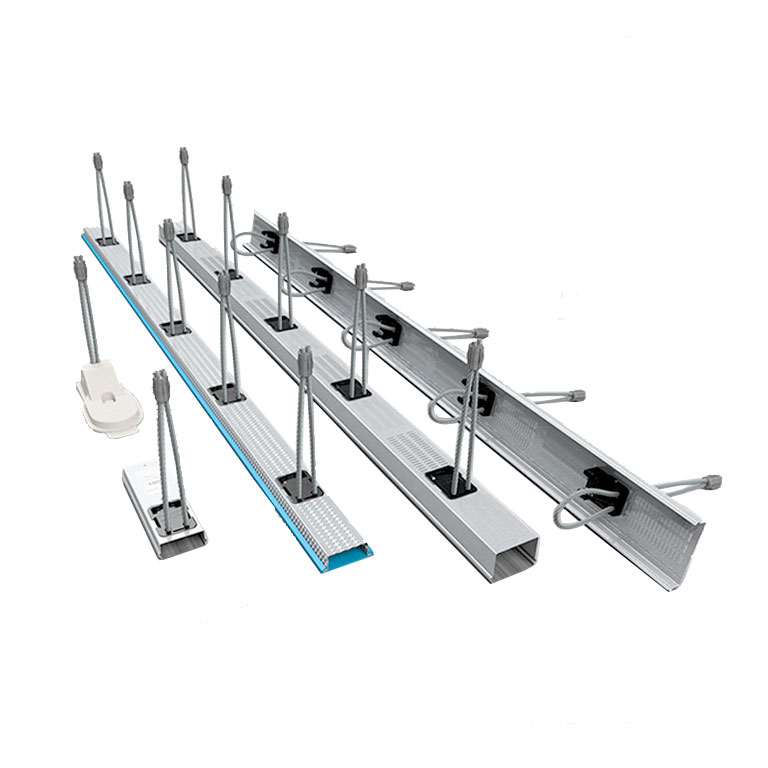

The Philipp Connecting Rails are designed for connections of concrete elements with no need to transfer high forces (constructive connections). This version is a combination
of steel wire ropes and metal channel (rail) in which the ready-for-use wire ropes are inserted. A high adhesion to the concrete is guaranteed by the profiled rail surface.
Available dimensions of the rails are: widths of 50, 60 and 85mm and heights of 20, 40 and 70mm. With a rail length of 1.25m, it is possible to choose between 2, 3 or 5 loops, each with different loop lengths. Other rail dimensions, also without loops are available on request.

Clear
Category:
Product Code No. of loops SL H L Rail Width 50 (mm) Rail Width 60 Rail Width 85 L1
(mm) (mm) (mm) B1 B2 B3 B1 / B2 / B3 (mm) B1 / B2 / B3 (mm) (mm)
84VS200802 2 80 20 1250 50 50 60 60 85 190
84VS200803 3 80 20 1250 50 50 60 60 85 190
84VS200805 5 80 20 1250 50 50 60 60 85 190
84VS201002 2 100 20 1250 50 50 60 60 85 190
84VS201003 3 100 20 1250 50 50 60 60 85 190
84VS201005 5 100 20 1250 50 50 60 60 85 190
84VS201202 2 120 20 1250 50 50 60 60 85 190
84VS201203 3 120 20 1250 50 50 60 60 85 190
84VS201205 5 120 20 1250 50 50 60 60 85 190
84VS400802 2 80 40 1250 50 50 60 60 85 190
84VS400803 3 80 40 1250 50 50 60 60 85 190
84VS400805 5 80 40 1250 50 50 60 60 85 190
84VS401002 2 100 40 1250 50 50 60 60 85 190
84VS401003 3 100 40 1250 50 50 60 60 85 190
84VS401005 5 100 40 1250 50 50 60 60 85 190
84VS401202 2 120 40 1250 50 50 60 60 85 190
84VS401203 3 120 40 1250 50 50 60 60 85 190
84VS401205 5 120 40 1250 50 50 60 60 85 190
Product Code No. of loops SL H L Rail Width 70 / 50 (mm) L1
(mm) (mm) (mm) B1 B3 B3 (mm)
84VS701005 5 100 70 1250 70 50 80 190
